3-8 μm Lasers: Empowering National Defense, Scientific Research, and Precision Medicine

3-8 μm Lasers: Empowering National Defense, Scientific Research, and Precision Medicine

Amid the rapid evolution of laser technology, the mid‑infrared band has emerged as a focal point due to its unique application value. As a core product in the mid‑infrared domain, 3–8 μm lasers feature broad spectral coverage, high beam quality, and stable performance. They demonstrate strong potential across national security, scientific research, precision medicine, and other fields, serving as a versatile laser solution for diverse scenarios.

1. Core Advantages of the Wavelength Band

The 3–8 μm mid‑infrared band lies within an atmospheric transmission window, combining penetration and targeting capabilities. It meets long‑range application requirements in national defense and precisely matches the absorption characteristics of biological molecules, enabling dual‑use in defense and medical applications and expanding the boundaries of technology.

2. Diverse Application Scenarios

2.1 National Security and Scientific Research

3–8 μm lasers are widely used in directional infrared countermeasures, trace gas analysis, laser illumination, and other applications. In national defense, directional infrared countermeasures effectively address infrared threats and enhance security. In scientific research, trace gas analysis supports environmental monitoring and material detection, providing precise technical support for scientific exploration.

2.2 Precision Medicine

Leveraging precise interactions with biological tissues, 3–8 μm lasers enable minimally invasive treatments. They efficiently ablate atherosclerotic plaques and cholesterol esters, and selectively remove lesions such as pancreatic tumors and gliomas. With high targeting accuracy and minimal damage to normal cells and vascular endothelium, they drive cardiovascular and oncological therapy toward minimally invasive and precise approaches.

3. Key Technical Specifications

3.1 Broad Wavelength and Customizable Power

Wavelength coverage: 3000–8000 nm, with typical ranges of 3700–5000 nm, 5700–6400 nm, 6000–7000 nm, and 7000–8000 nm.

Power options: 10 W (customizable) and 30 W (hundred‑watt level customizable).

3.2 High Performance and Stability

Operating mode: high‑repetition‑rate pulse.

Power adjustment: 10–100%.

Beam quality: M² <1.5 (10 W) / M² <2.5 (30 W).

Cooling: air cooling (10 W) / liquid cooling (30 W).

Operating temperature: −50 to +70 °C (10 W) / −50 to +60 °C (30 W).

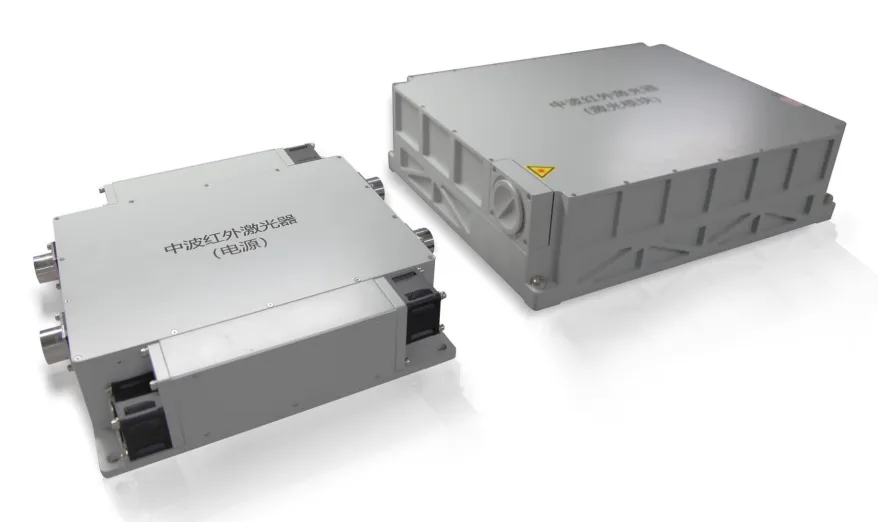

3.3 Compact and Lightweight Design

Dimensions: 320×240×90 mm (10 W), 400×330×100 mm (30 W).

Weight: <6 kg (10 W), <14 kg (30 W).

4. Technical Value

3–8 μm lasers serve as a shield for national security, a booster for scientific research, and a scalpel for precision medicine. With multi‑scenario adaptability, high performance, and precision, they drive technological advancement across multiple fields.
